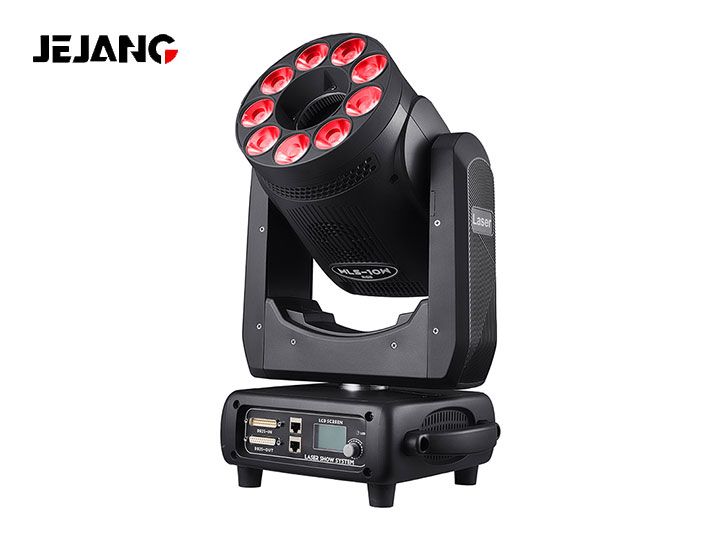

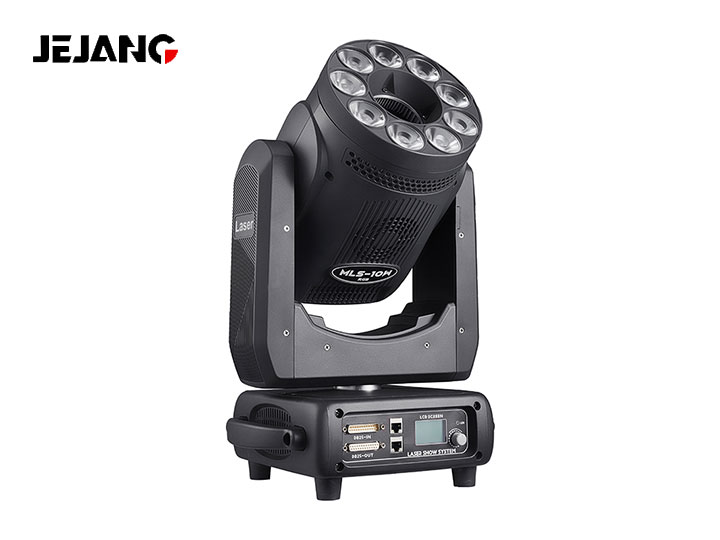

Item: 10W Laser moving head light with wash effect
Model: JJ-MH8920L
The optical system
Light source: high power 400WLED light source
Optical Angle: 7°-42°
Light source life: more than 2000 hours
Color system
6 colors + white, color flowing, color rainbow can be realized
Design system
1 rotating pattern disc with 7 pattern pieces + white light
Can realize rotation, two-way water, jitter effect
Pattern wheel can be positioned
1 fixed pattern plate with 8 fixed pattern + white light
Effect of the configuration
Aperture: 5%-100% smooth adjustment
Dimming: Electron 0-100% linear dimming
Atomization: electron 0-100% linear atomization soft light effect
Zoom in: 7°-42° focusing linear zoom
Fast stroboscopic, multi-stroboscopic mode selection, synchronous, bisecting, pulse, random
Prism: a 4 - sided prism that can rotate independently in both directions
(optional)
Shaking parameters
Horizontal 540°, accuracy 2.11°/ step, fine tuning accuracy 0.008°
Vertical 240°, accuracy 1.05°/ step, fine tuning accuracy 0.004°
Electro-optic reset system with automatic error correction is adopted horizontally and vertically
Control and programming
Control channels: 21 DMX channels
Protocol: DMX512
Menu display: 2.8-inch LCD touch screen + button, Chinese and English can be switched freely, the font can be automatically reversed 180 degrees display
DMX signal connection: three-core XLR input/output
Electric control technology
Menu or console control lamp reset
Temperature electronic sensing detection
DMX channel level monitoring
Inquire lamp information through LCD screen
Speed regulation by intelligent fan
XY axis three-phase motor drive
RDM data bi-directional transmission
Overcurrent, overvoltage and overheat protection
The power supply
AC100-240V,50/60Hz
Switching power supply
Input power: 600W, power factor PF≥0.98
Working temperature
- 10 ° to 45 °
Weight and Dimensions
Net weight of lamp body: 25kg
Product size: 415×281×715mm
Packing size: 780×360×510mm
Gross weight: 28 kg
The packing way
Cartons: one in a pack
Protection grade
IP20
